As a respected world leader, with a proud history in motion control and fluid technology, Norgren is ideally placed to unearth Breakthrough Engineering solutions and plays an active role in important industry sectors that contribute to the quality and success of everyday life.
Norgren creates intelligent handling systems and delivers products that efficiently, reliably and cost-effectively move, press, shape and form metal in robotic (Tandem), Crossbar, Tri-axis and hot forming press applications.
Norgren Cobot Tool
Tight spaces, odd angles, changing presses and products – your pressroom needs tooling that can adapt to any situation with a wide range of motion and faster speeds for overall increased capacity.
Carbon Fiber Structures
Conventional aluminum and steel booms are heavy and imprecise; carbon fiber booms are lightweight, durable, and sturdier for higher speeds and precision – perfect for material handling. They are also chemical resistant, moldable, and repairable. Our expertise in fabricating, maintaining and refurbishing carbon fiber components is unparalleled in North America.
Cables and Accessories
Double Blank Analyzers
Recent trends in vehicle manufacturing found automotive stampers faced with the need to process increasingly thicker blanks while working within smaller size constraints.
Our double blank detection sensors prevent damage to dies and presses by detecting multiple blanks during the load sequence. Contact-style sensors detect multiple blanks in the loading process, allowing early rejection and removal.
The newest Norgren double blank analyzer, (EDBA) are EtherNet/IP capable, while still maintaining the industry’s fastest response times and most durable system!
Grippers and Shovels
The PGS range of grippers delivers class-leading grip force and actuation time. They feature a hardened steel chassis that ensures durability and long service life.
GC3 and GC4 clamps are ideal for use in body and assembly due to its closed body to protect from weld sparks.
Norgren’s shovels are available as a standard or custom solution. Shovels come with welded steel telescope and optional sensing!
Single Arm Kit
Double Arm Kit
Norgren’s material handling group introduces modular tooling and mounting structures systems to incorporate easy, durable and lightweight position mounting solutions for all applications.
Norgren tooling systems allow user friendly integration of vision to assembly, material handling, material detection and welding applications across all industries.
Stud and Nut Sensors
Norgren’s stud and nut sensors help to reduce waste and save time in metal pressing plants. By ensuring threads are sound before assembly, faulty parts are removed from the line before they cause problems.
- Reduces waste and error
- Saves time and cost
- Eliminates the need for hand sorting
- Can stand up to heavy side loading
- Highly sensitive detection

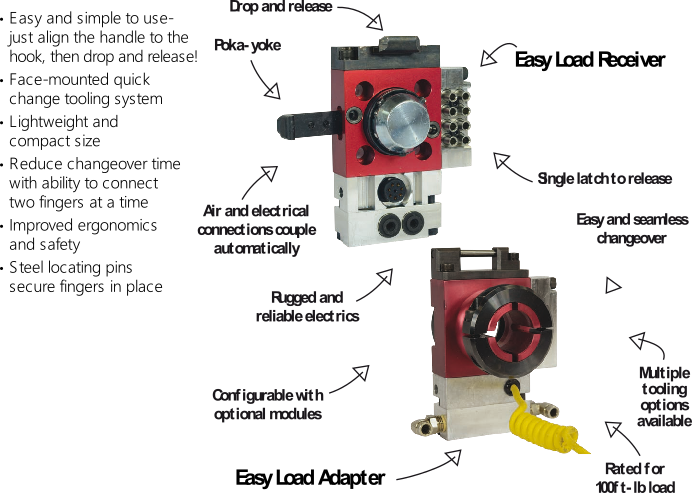

We offer a range of tool changers to meet your needs, making changeover seamless to accommodate high production levels and mix. Use our table to contrast and compare tool changers to determine which is best for your application.
Automation studies or the Finger Integration Package (FIP) shows the gripper, cup, or end effector location together with the transfer curves.
- Ensures die design is optimal for automation
- Increases strokes per minute (SPM)
- Eliminates or reduces extra machining cost due to automation issues
- Ensures panel optimal handling
- Smooth home line press launches
- No tooling design is included in this package
This process takes die components and press capabilities into consideration to design curves that will optimize throughput.
- Shows completed design with full dies and panel strip layout
- Smart Press Models allow our Engineering Team to check accuracy in all positions of the transfer motion
Tooling or Finger Integration Review (FIR):
- Identifies issues between the tooling and the die in advance
- Evaluates the complete design and explains all issues and concerns found during the design stage
- Helps eliminate interference issues during home line tryout, as well as rework machining costs
- FIR report is included with every Tooling Design
Provides supporting documents for the build, order, and set-up of the panel and press
- Provides verification that the FIR report changes have been made by the die design source
- Provides verification that the dies match the die design and panel transferability
This process verifies that the tooling is built exactly to the design parameters.
- Ensures the customer receives plug-and-play tooling for quick and easy installation
Our Field Support experts will come to the plant and aid with the initial tooling set-up.
- Reduce Home Line Tryout time
Simulation can be done to improve the transfer and performance of the press (SPM), and/ or to optimize the transfer curve for a new job.
- A Norgren Press Programming Specialist will optimize your transfer curves using transfer press simulation software
- Press curves are custom to each die
- Analyzes current transfer, identifies clash or clearance issues, and adjustments to increase SPM
- Completely eliminates trial and error prior to first run
- Faster start up, avoid die rework, and increa
Automation and tooling services
We offer eight different service options to help you get the most out of your machines. Our packages maximize SPM (strokes per minute), reduce start-up time and increase over-all equipment efficiency in the press room.
We design, build, and install highly productive tooling packages that increase press throughput, reduce setup time or downtime, and improve ergonomics and safety.
Adaptive and Transforming Tooling
Optimize your business’s tooling for all pick-and-place material handling applications. Transforming Tooling a series of arms driven by electric motion, providing a new way to move products in a repeatable, accurate, and reliable manner.
- Eliminate hundreds of thousands of dollars in recurring tooling costs
- Free up hundreds of square meters of floor space
- Eliminate manual tool change and optimize safety
Press Room Destacker
Press Room Inner Press
Palletizing and Packaging
Carbon Fiber Services
We have over 20 years of experience in carbon fiber design, manufacture and repair. Unlike their conventional aluminium and steel equivalents, carbon fiber bars can be repaired. We also offer services analyzing the deflection, vibration and stress of the carbon fiber structure.
Conventional aluminum and steel booms are heavy and imprecise. Carbon fiber booms are lightweight, durable, and sturdier, for higher speeds and precision: perfect for pick-and-place or transfer presses.
- Using a unique carbon fiber layup structure, the weight of the system is reduced by 50% over traditional steel; without compromising the strength and deflection
- High strength and stiffness can be attained using modulus carbon fiber material
- Carbon fiber can be molded into complex shapes or long structures (up to 20 feet) to meet custom loading characteristics
- Lighter structures increase automation strokes per minute (SPM)
FEA is performed with a composite material layer analysis tool to analyze the deflection, vibration, and stress of the carbon fiber structure.
Layer analysis is capable of:
- Showing layer patterns (parallel, cross)
- Analyzing the deflection and stress within individual layers
- Performed after the carbon fiber layup and baking process
- Compares theoretical and physical deflection test data
- Performed while the crossbar is in working condition to collect vibration and deflection data
Unlike steel bars, carbon fiber bars can be repaired, saving money in the long run.
Layer analysis is capable of:
- Repair strengthens the carbon fiber structure
- Save money by repairing booms or crossbars instead of replacing them after a break
Black Slice Nesting System for supporting panels in press idle stations when a die is lacking, or a part needs to be staged for the next automation. The Black Slice Nesting System conforms to the geometry of the part for effective support and protection.
Linear slides to work around a pitch problem
Tooling carts for organized tooling storage by job
Tipper, Rotary or Spreader Units work around die process issues
- Turnover stations resolve part orientation issues
Custom Press Room Projects
Amending processes for new parts or reusing old tooling can occasionally call for custom equipment to fit existing equipment in new applications or plants.
From turnover stations to idle stations, linear slides or tipping stations, our Applications Engineering Team can design and develop your special equipment to accommodate special part shapes or space requirements for your application.
We offer a full spectrum of die services, from processing to die design and feasibility studies.
Our Die Design Team can provide three types of design packages:
- 3D die processing creates ideal die layouts, by minimizing the number of dies needed and reduce machining waste
- 3D die design modeling replicates die functions by filling gaps between dies, or orienting and rotating parts in a series of dies
- Feasibility press studies perfect the die process by automating sheet metal motion plans through a press or within multiple presses and idle stations
